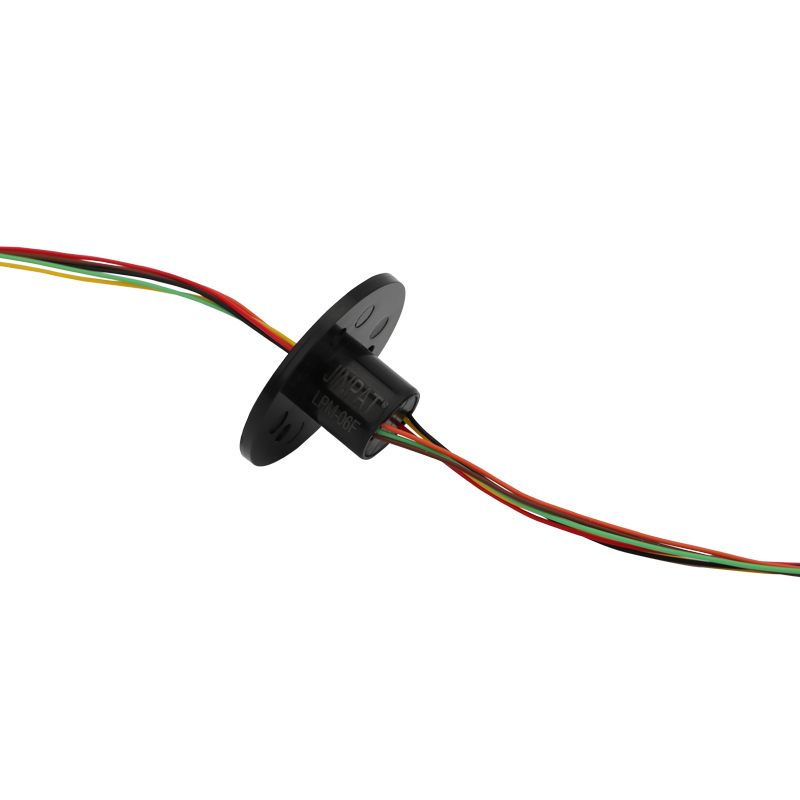

6 Circuit Mini Slip Ring 2A 240V Gold Contacts for Remote Control
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 外径 | 12.5 mm | 回路の数 | 6 |
|---|---|---|---|
| 電圧定格 | 240 VAC/DC | 現在の評価 | 回路ごとの2つのamps |
| 動作速度 | 0-200のrpm | 接触資料 | 金への金 |
| 温度範囲 | -20から+60 | リードサイズ | 30＃銀メッキ銅 |
| リード長 | 250 mm | 誘電強度 | ≥200VAC @50Hz |
| 絶縁抵抗 | 50MΩ @ 500 VDC | 電気ノイズ | 30mΩmin |
| 最大速度 | 300 rpm | 回転 | 連続的な360° |
| 住宅資料 | 金属（オプション） | ||
| ハイライト | 6 circuit mini slip ring,slip ring with gold contacts,2A 240V rotary slip ring |
||
製品の説明
Conductive Mini Slip Ring OD 12.5 mm 6 Wires /2A Long Working Life Capsule Slipring
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Operating Speed | 0-200 rpm |
| Contact Material | Gold to Gold |
| Features | Remote Control |
Product Overview
The LPM-06F miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The sliding contact is established by a brush that presses against a metal ring. The "brush" can appear as metal fibers or as a single wire/spring with a contact pad.
Technical Specifications
| Operating Speed | 0-200 rpm |
| Temperature Range | -20 to +60°C |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm |
| Dielectric Strength | ≥200 VAC @50Hz, between each circuit |
| Insulation Resistance | 50MΩ @ 500 VDC |
| Electrical Noise | 30mΩMin |
Key Features
- 6 circuit models available
- 2 amps per circuit, 240 VAC/DC
- Precision assembly for exceptional rotational life
- Speed up to 300 rpm continuous operation
- Gold-Gold contacts for reliable performance
- Flexible, color-coded, silver-plated lead wires
- Superior handling of low level control signals
- Optional metal housing available
Product Advantages
- Low torque minimizes system torque budget
- Compact design fits demanding space requirements
- Smooth running operation
- Low electrical noise
- Quick shipment available for urgent requirements
- 360° continuous rotation capability
- Custom components can be added
Manufacturer Information
JINPAT Electronics specializes in high-quality slip ring solutions with:
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise
- 69 patents held
- Global partnerships with renowned enterprises
- Over 10,000 successful designs across multiple industries
- 20+ years of production and R&D experience since 1996
- Free custom slip ring solutions for various equipment
- Fast delivery service
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What types of slip rings do you provide?
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
Do you provide custom slip rings?
Yes, our engineers can develop perfect custom solutions for your specific needs. Contact us to discuss your requirements.
