6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路番号 | 6 | 現在の評価 | 1a |
|---|---|---|---|
| 電圧 | 240vac | 誘電強度 | サーキット間で500V以上50Hz |
| 絶縁 | 100MΩ@500VDC | 電気ノイズ | ≤15mΩ |
| 作業速度 | 0~300回転/分 | 接触資料 | 貴金属 |
| ワイヤーサイズ | 30＃シルバーメッキ銅UL、テフロン | リードワイヤの長さ | 回転子:250mm;固定子:250mm |
| 作業温度 | -20~+60℃ | 湿度 | ≤60%RH |
| 保護グレード | IP54 | スタイル | カプセルのスリップ リング |
| 連絡先タイプ | 金の接触 | ||
| ハイライト | 6 circuit mini slip ring,240VAC high precision slip ring,1A rotary slip ring |
||
製品の説明
Slip Ring VW 6 Wires with 1A Current & Low Electrical Noise
High Precision Mini Slip Ring for Industrial Applications
Key Features
- 6 circuits with 1A current rating
- Low electrical noise (≤15mΩ)
- Gold contacts at rotary interface
- Color-coded lead wires for easy installation
- Compact capsule slip ring design
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Circuit Number | 6 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Working Speed | 0~300 rpm |
| Working Temperature | -20~+60℃ |
| Style | Capsule slip ring |
| Dielectric Strength | ≥500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Product Description

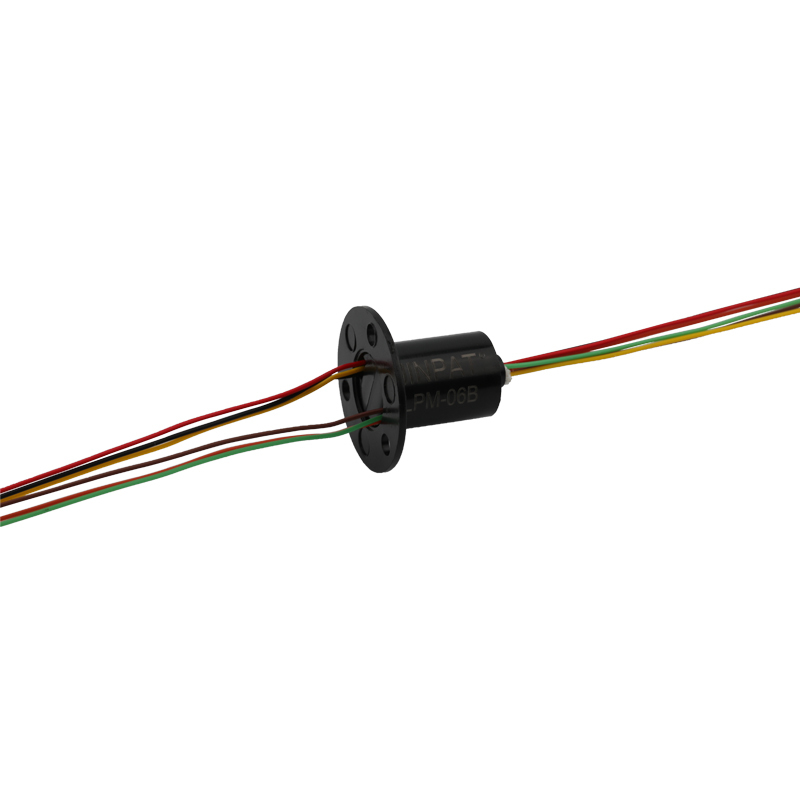

The LPM-06B miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Applications
- Electric devices
- Medical facilities
- Industrial machinery
- LED industry
- Medical equipment
- High-precision facilities
Product Images
Manufacturer Advantages
- 12,000 square meter plant with 500+ employees
- National High and New Technology award recipient with 69 patents
- 20+ years of production and R&D experience since 1996
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Free custom slip ring solutions available
- Fast delivery times
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from a stationary to a rotating structure. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires.
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
