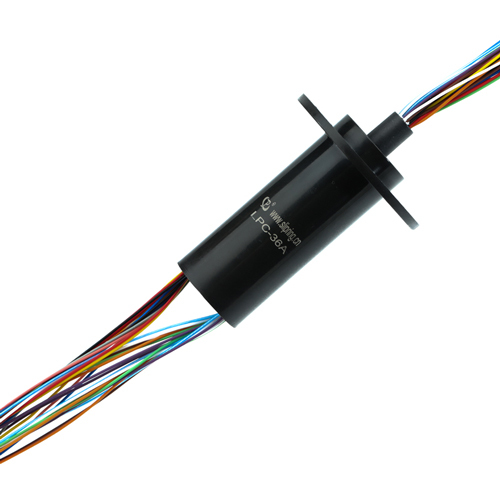

36 Circuit Capsule Slip Ring 2A 240VAC/DC Gold Contact
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 動作速度 | 0-200のrpm | 回路の数 | 36 |
|---|---|---|---|
| 電圧 | 240 VAC/DC | 現在の評価 | 回路ごとの2つのamps |
| 温度範囲 | -20 ℃〜 +60℃ | 接触資料 | 金への金 |
| リードサイズ | 28#銀製の銅板 | リードの長さ | 250 mm（9.843inch） |
| 穴の直径 | 1.5~6mm | 誘電強度 | 各回路の間、≥200VAC @50Hz |
| 絶縁抵抗 | 50MΩ @ 500 VDC | 電子ノイズ | 30mΩ分 |
| 外径 | 22mm〜54mm | 保護グレード | IP64 |
| 最大速度 | 300rpm | ||
| ハイライト | 36 circuit slip ring,2A 240VAC/DC slip ring,gold contact slip ring |
||
製品の説明
Capsule Slip Ring Rotary Joint 36 Circuits 2A IP64, 300RPM Wind Power Slip Ring
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Operating Speed | 0-200 rpm |
| Number of Circuits | 36 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Lengths | Standard 250 mm (9.843inch) |
| Hole Diameter | 1.5~6mm |
| Dielectric Strength | ≥200 VAC @50Hz, between each circuit |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electronic Noise | 30mΩ Min |
Key Features
- Military standard surface processing
- Precise construction
- Gold-to-gold contact
- Low resistance
- Long service life
Customization Options
- Rotating speed
- Life span
- Protection grade
- Number of circuits
- Current capacity
- Size
- Housing material
- Mass production
Main Applications
- High speed dome
- Camera platform
- Electrical testing equipment
- Rotary table
- Manufacturing and control equipment
Our Advantages
- Large production facility of over 12,000 square meters with more than 500 employees
- Recognized as "National High and New Technology" company with 69 patents
- Long-term partnerships with global enterprises and worldwide agents
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with more than 20 years of production and R&D experience
- Free custom slip ring solutions tailored to various equipment requirements
- Fast delivery service
Typical Application
Company Information
Frequently Asked Questions
What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. It can be used in any electromechanical system requiring rotation while transmitting power or signals, improving mechanical performance and simplifying system operation.
What kinds of slip rings do we offer?
- Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
- Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Proper selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.
Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your needs. Contact us to discuss custom or modified solutions.
