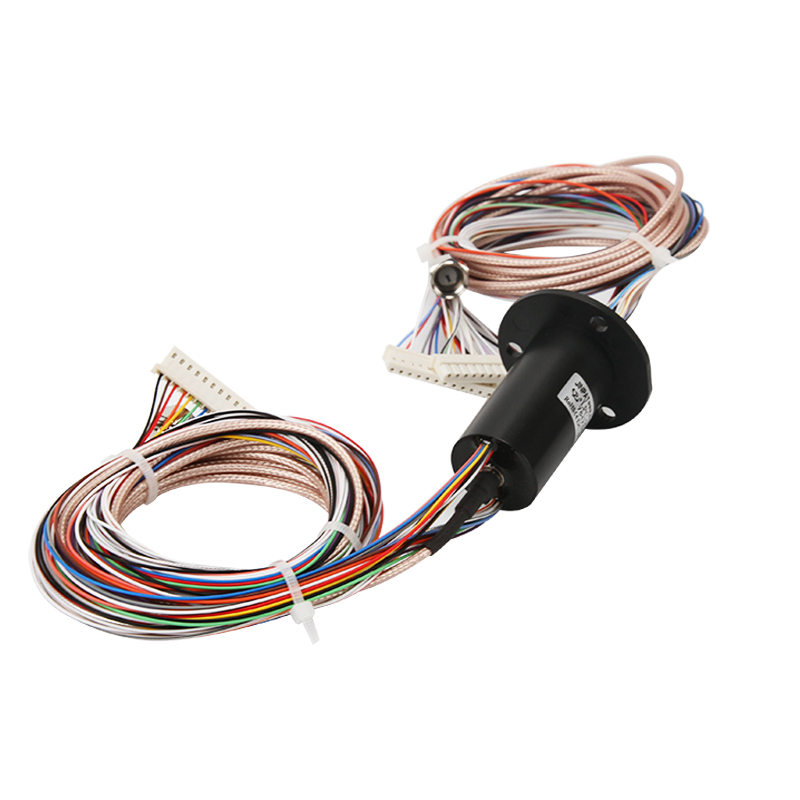

JINPAT LPC Capsule Slip Ring 240VAC Gold Contact 300rpm
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 定格電圧 | 240 VAC/DC | 回転速度 | 0〜300rpm |
|---|---|---|---|
| 接触資料 | 金への金 | 回路 | 24の回路 |
| 誘電強度 | 500VAC@50Hz（P）300VAC@50Hz（s） | 絶縁抵抗 | ≥100mΩ@500VDC（P）≥100mΩ@100VDC（S） |
| ワイヤーの長さ | ステーター：250mm、ローター：250mm | 鉛線の大きさ | awg28＃ |
| 温度範囲 | -20°C〜+60°C | 湿度 | ≤60%RH |
| 周波数範囲 | 0-3GHz | 特定のインピーダンス | 50/75Ω |
| 挿入損失 | <1.2dB | VSWR | <1.6 |
| ケーブルサイズ | RG316/RG179 | ||
| ハイライト | LPC capsule slip ring 240VAC,gold contact slip ring 300rpm,rotary slip ring with warranty |
||
製品の説明
JINPAT LPC Capsule Slip Ring - 240VAC IP40, Precious Metal
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Rotating Speed | 0~300rpm |
| Contact Material | Gold To Gold |
| Life span | Customizable |
Product Description
High frequency slip ring is a product specially developed to meet high-speed serial digital signal or analog signal transmission.
This series of products support high-frequency signal transmission, and also support mixed transmission of high-frequency signal and 24V control signal, communication signal, power supply, fluid medium. The high-frequency signal adopts 50/75Ω characteristic impedance RF coaxial structure head.
Key Features
- Gold-gold contact on the contact material, which can meet the service life of 100 million revolutions
- 90-degree V-groove design can rotate 360 degree smoothly and unlimitedly, with low torque, low wear, and low electronic noise
- Anti-aging and high temperature resistance
Technical Specifications
| Electrical & Electronics | Mechanical | ||
|---|---|---|---|
| Circuits | total 24circuits | Rotating Speed | 0~300rpm |
| Rating Voltage | 240 VAC/DC | Contact Material | Gold To Gold |
| Dielectric Strength | 500VAC@50Hz(P) 300VAC@50Hz(S) | Housing Material | Engineering Plastics |
| Insulation Resistance | ≥100MΩ@500VDC (P) ≥100MΩ@100VDC (S) | Wire Length | Stator: 250mm Rotor: 250mm |
| Lead Wire Size | AWG28 # | ||
| Environmental | Others | ||
| Temperature | -20°C~+60°C | Life span | Customizable |
| Humidity | ≤60%RH | Note | "P" stands for power, "S" stands for signal |
| Protection grade | Customizable | ||
| Coaxial Parameter | |||
| Connect Model | BNC/SMA | Frequency range | 0-3GHz |
| Specific Impedance | 50/75Ω | Housing Material | Brass |
| Insertion Loss | <1.2dB | Contact Material | Precious Metal |
| Insertion Loss-WOW | <0.1dB | Cable Size | RG316/RG179 |
| VSWR | <1.6 | Cable Length | Stator: 250mm Rotor: 250mm |
| VSWR-WOW | <0.1 | ||
Outline Drawing
Our Advantages
- With a large plant of over 12,000 square meters and more than 500 employees
- The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
- Long-term cooperation with global famous enterprises and agents all over the world
- With Over 10,000 designs with success in civil, military, commercial and industrial applications
- Founded in 1996, with more than 20 years of production and R & D experience
- Providing free custom slip rings solutions, which can be suitable for a variety of equipment
- Fast delivery
FAQ
What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
What kinds of slip rings do we provide?
- Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
- Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
Do you provide custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
