High Frequency RF Slip Ring 50MHz-3GHz SDI Signal Low Noise
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 帯域幅 | 50MHz-3GHz | 信号タイプ | SDI |
|---|---|---|---|
| 保護グレード | IP54 | 作業速度 | 50 rpm |
| 回路 | 12 | 現在の評価 | 2Aかより高い |
| 電圧 | 240vac | 作業温度 | -20~+60℃ |
| 電気接触 | 金への金 | 湿度 | 60%RH |
| リードワイヤの長さ | 回転子:250mm;固定子:250mm | 絶縁抵抗 | 1000mΩ@500VDC |
| 住宅資料 | アルミニウム合金 | 特徴的なインピーダンス | 50Ω |
| 回転 | 連続的な360° | ||
| ハイライト | high frequency RF slip ring,50MHz-3GHz SDI slip ring,low noise rotary slip ring |
||
製品の説明
High Frequency RF Slip Ring
360° continuous rotation with compact design for electrical applications
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Bandwidth | 50MHz-3GHz |
| Signal | SDI |
| Features | Remote Control |
| Advantage | Low electrical noise |
Product Description

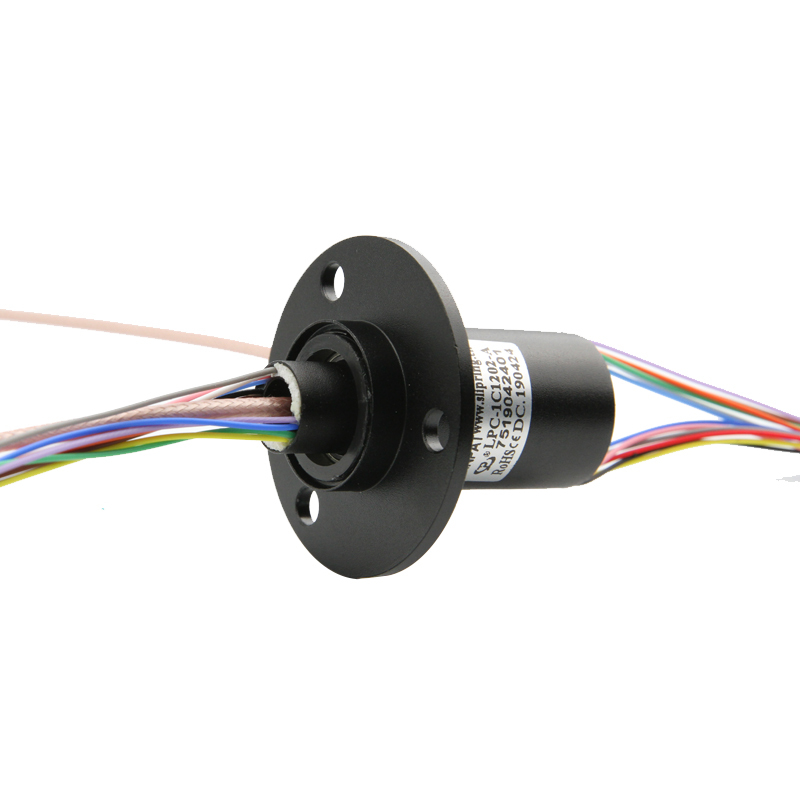

The LPC-1C1202-A slip ring is a specialized unit with RF Coaxial Connector featuring a bandwidth of 50MHz-3GHz. Color-coded lead wires on both stator and rotor simplify electrical connections.
Utilizing a 90° V-groove ring design, the LPC-1C1202 delivers smoother operation, lower torque, and reduced electrical noise compared to competitive models.
Technical Parameters
| Parameter | Value |
|---|---|
| Protection Grade | IP54 |
| Working Speed | 50 RPM |
| Circuits | 12 |
| Current Rating | 2A or higher |
| Voltage | 240VAC |
| Working Temperature | -20°C to +60°C |
| Electric Contact Material | Gold to Gold |
| Humidity | 60%RH |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Insulation | 1000MΩ@500VDC |
| Housing Material | Aluminum Alloy |
| Characteristic Impedance | 50Ω |
Key Advantages
- Low torque minimizes system torque budget
- Compact design fits demanding space requirements
- Smooth running operation
- Low electrical noise for clean signal transmission
- Quick shipment available for urgent requirements
- 360° continuous rotation capability
- High bandwidth transfer performance
- SDI signal transfer capability
Typical Applications
- Electrical test equipment
- Manufacturing and process control systems
- Indexing tables
- CCTV pan/tilt camera mounts
- Robotics and rotary sensors
- Emergency illumination equipment
- Exhibit and display systems
- Aviation, military, medical, and instrumentation equipment
