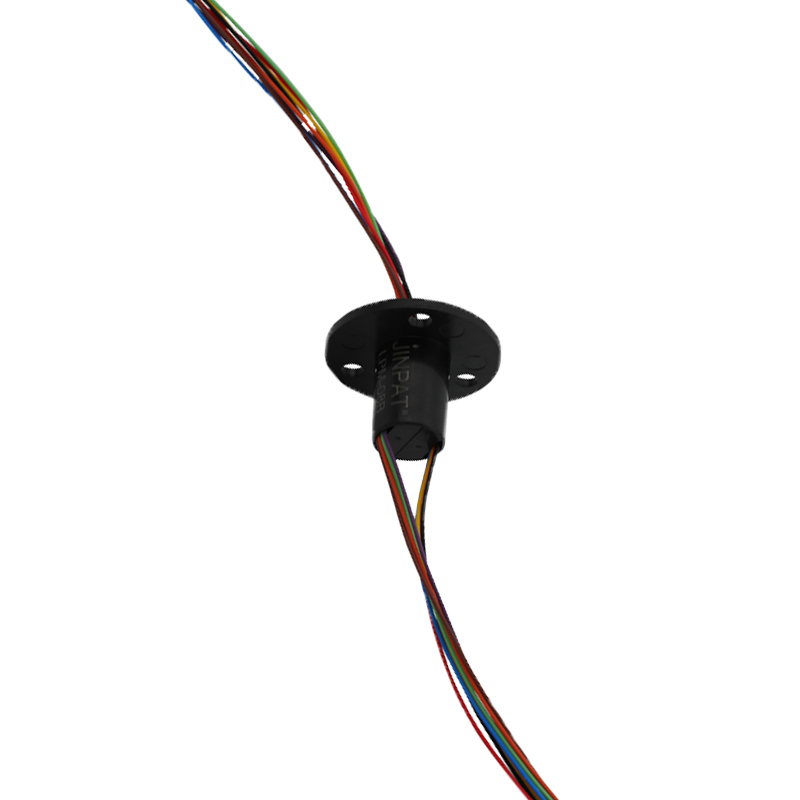

Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回転速度 | 0〜300rpm | 接触資料 | 金への金 |
|---|---|---|---|
| 保護グレード | IP40 | 合計回路 | 8つの回路 |
| 現在の容量 | 4回のサーキット*4a | 定格電圧 | 110VAC/DC |
| 誘電強度 | 200vac@50Hz（P） | 絶縁抵抗 | 50MΩ@200VDC（P） |
| ダイナミック抵抗の変動 | 35mΩ | 鉛線の大きさ | AWG28＃銀メッキ銅UL、テフロン |
| 動作温度 | -20°C〜+60°C | 湿度 | ≤60%RH |
| 住宅資料 | エンジニアリング プラスチック | ステーターワイヤの長さ | 200mm |
| ローターワイヤの長さ | 55mm | ||
| ハイライト | Miniature slip ring gold contact,8 circuit slip ring 0-300rpm,Rotary slip ring IP40 |
||
製品の説明
Miniature Capsule Slip Ring 8 Circuits 0~300rpm Low Resistance
Ideal for Smart Robots and Compact Applications
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Rotating Speed | 0~300rpm |
| Contact Material | Gold To Gold |
| Life span | Customizable |
| Protection grade | IP40 |
Product Description
Premium Quality at Competitive Pricing
Our miniature slip rings provide the perfect solution for power and signal transmission in devices with limited installation space. The JINPAT LPM-08B-0404 model features a durable metal housing with gold-to-gold contacts for stable performance, and a toughened material design for enhanced aesthetics. With a slender profile similar to a pencil, this compact unit contains 8 total circuits (4 circuits rated for 4A current transmission).
Key Features and Advantages
- Military-grade materials and manufacturing processes
- Stable performance for accurate signal transmission
- Long lifespan with high protection (maintenance-free operation)
- Compact, lightweight design with streamlined structure
- Easy installation and smooth operation
- Low torque with minimal electrical noise and resistance
Technical Specifications
Electrical & Electronics
| Circuits | Total: 8 circuits (4 circuits × 4A) |
| Rating Voltage | 110VAC/DC |
| Dielectric Strength | 200VAC@50Hz(P) |
| Insulation Resistance | 50MΩ@200VDC (P) |
| Dynamic Resistance Fluctuation Value | 35MΩ |
| Lead Wire Size | AWG28 # silver plated copper UL, Teflon |
Mechanical
| Rotating Speed | 0~300rpm |
| Contact Material | Gold To Gold |
| Housing Material | Engineering Plastics |
| Wire Length | Stator: 200mm Rotor: 55mm |
Environmental & Others
| Temperature | -20°C~+60°C |
| Humidity | ≤60%RH |
| Protection grade | IP40 |
| Life span | Customizable |
| Note | "P" stands for power, "S" stands for signal |
Product Outline
Company Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward:
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom solutions for diverse equipment requirements
- Fast delivery times
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. Slip rings enhance mechanical performance, simplify system operation, and eliminate damage-prone dangling wires in movable joints.
What kinds of slip rings do we provide?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.
Do you provide custom slip rings?
Yes, our engineers develop perfect solutions for unique requirements. Contact us to discuss your custom slip ring needs.
