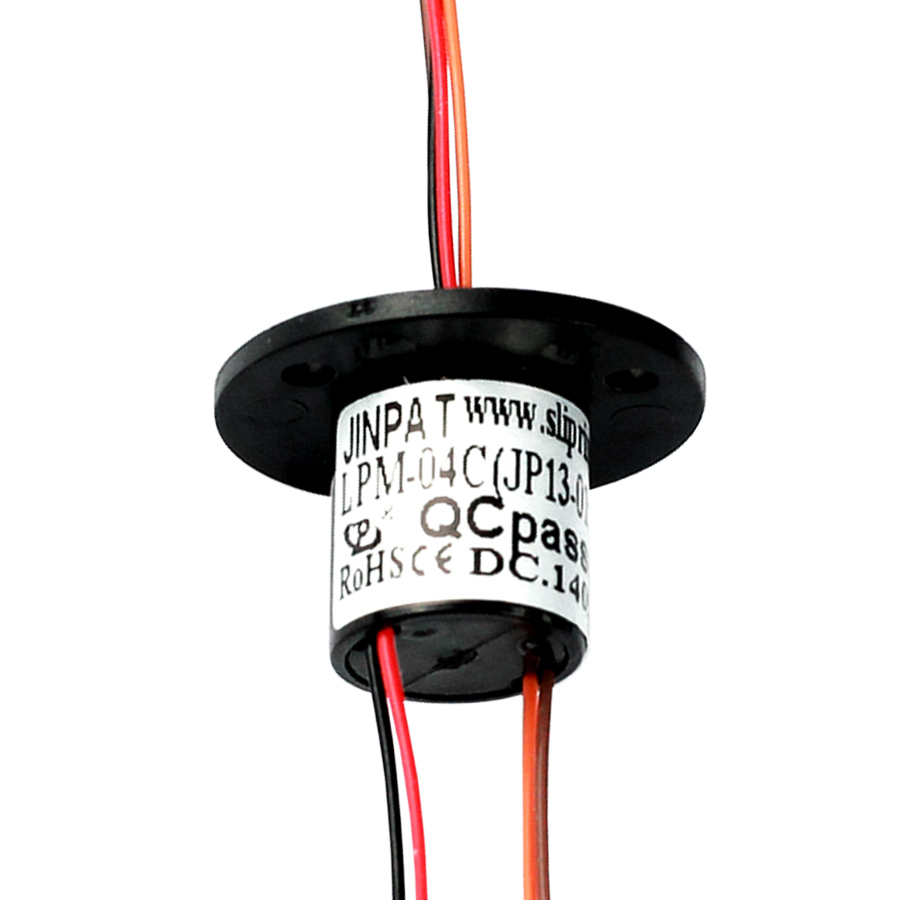

4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路の数 | 4 | 作業速度 | 200rpmマックス |
|---|---|---|---|
| 電圧 | 240VDC/AC | 現在の評価 | ワイヤーあたり2a/4a |
| 住宅資料 | アルミニウム合金 | 保護グレード | IP65 |
| 接触資料 | 銀から銀 | 動作温度 | -30~+80℃ |
| 最大電源 | 回路ごとに600A | 信号チャンネル | オプション |
| ワイヤー関係 | オプション | メンテナンスフリー | 2年 |
| ショックプルーフデザイン | はい | 低温抵抗 | はい |
| エンコーダー互換性 | 絶対エンコーダーが利用可能 | ||
| ハイライト | miniature slip ring for robot arm,4 circuit slip ring 240V,rotary slip ring 200RPM |
||
製品の説明
Small Size Capsule Slip Ring With 4 Circuits Digital Signals Transmission, Low Torque
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories, miniature slip ring |
| Number of circuits | 4 |
| Working speed | 200rpm max. |
| Voltage | 240VDC/AC |
| Current rating | 2A/4A per wire |
| Feature | Robot arm, Remote Control |
Product Description
A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
- Holding the center core stationary while the brushes and housing rotate around it.
- Holding the brushes and housing stationary while the center core is allowed to rotate.
Key Features
- Compact structure with flexible installation
- Reliable and durable for long-term operation
- Aluminum alloy housing with IP65 protection grade - suitable for dusty environments
- Alloy brush with precious contact material (silver to silver) for excellent conductivity and low signal loss
- Shockproof design with operating temperature range: -30°C to +80°C
- Compatible with absolute encoders and potentiometers
- Power supply up to 600 amperes per circuit with optional signal channels and wire connection methods
- Short delivery time with available customized solutions
- Long lifespan with maintenance-free operation for 2 years
Product Benefits
- Compact size for space-constrained applications
- Low friction operation
- Long life and high reliability
- Quick delivery and cost-effective solution
- Easily customizable to specific requirements
- CE and RoHS compliant
Manufacturer Advantages
Welcome to JINPAT Electronics - Providing free custom slip ring solutions to propel your technology forward.
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- Established in 1996 with over 20 years of production and R&D experience
- Free custom solutions adaptable to various equipment requirements
- Fast delivery times
Typical Applications
