8 Circuit Capsule Slip Ring 1A 240VAC/DC Gold Contacts
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路の数 | 8 | 電圧 | 240 VAC/DC |
|---|---|---|---|
| 現在の評価 | 回路ごとの1つのamp | 動作速度 | 0-200のrpm |
| 接触材料 | 金への金 | 温度範囲 | -20から+60 |
| リードサイズ | 30＃銀メッキ銅 | リード長 | 250 mm（9.843inch） |
| 絶縁抵抗 | 50MΩ @ 500 VDC | 電気ノイズ | 30mΩ分 |
| 住宅資料 | エンジニアリングプラスチックまたは金属 | 回転 | 連続的な360° |
| 帯域幅転送 | 高い | トルク | 低い |
| デザイン | コンパクト | ||
| ハイライト | 8 circuit slip ring,capsule slip ring with gold contacts,240VAC/DC slip ring |
||
製品の説明

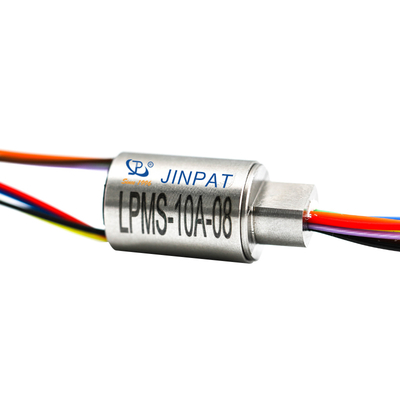

LPMS-10A-08 Super Miniature Slip Ring
Low Torque 1A/Road, Can Be Mixed Motor Slip Ring
Product Description
Bargain Price Only in Alibaba
The LPMS-10A-08 super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPMS-10A-08 allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.
Key Features
- 8 circuits models
- 1 amp per circuit, 240VAC/DC
- Precision assembly to provide exceptional rotational life
- Speed up to 200 rpm continuous
- Gold-Gold contacts
- Flexible, color-coded, silver-plated, lead wires
- Superior handling of low level control signals
- Metal housing optional
Technical Specifications
| Operating Speed | 0-200 rpm |
|---|---|
| Number of Circuits | 8 |
| Voltage | 240 VAC/DC |
| Current Rating | 1 amp per circuit |
| Temperature Range | -20 to +60°C |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | 30mΩ Min |
| Housing Material | Engineering plastic or metal |
Product Advantages
- Low torque minimizes system torque budget
- Compact design to fit in the most demanding space
- Smooth running
- Low electrical noise
- Quick shipment per your urgent requirement
- 360° continuous rotation
- High bandwidth transfer capability
- Rapid shipment
