48VAC 4-Wire Miniature Slip Ring 1A Current 100 RPM Speed
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路番号 | 4 | 現在の評価 | 1a |
|---|---|---|---|
| 電圧 | 48VAC | 作業速度 | 0~100のrpm |
| 作業温度 | -20~+60℃ | 電気ノイズ | ≤15mΩ |
| 接触材料 | 貴金属 | 住宅資料 | ステンレス鋼 |
| ワイヤーサイズ | 30＃シルバーメッキ銅UL、テフロン | リードワイヤの長さ | 回転子:250mm;固定子:250mm |
| 保護グレード | IP54 | スタイル | カプセルのスリップ リング |
| タイプ | 電子付属品 | 連絡先タイプ | 金の接触 |
| ワイヤの色 | 色分けされた | ||
| ハイライト | 48VAC miniature slip ring,4-wire slip ring 1A current,capsule slip ring 100 RPM |
||
製品の説明
48 VAC 4-Wire Super Miniature Slip Ring with Light Small Figure Illumination Electrical Contacts
Product Description

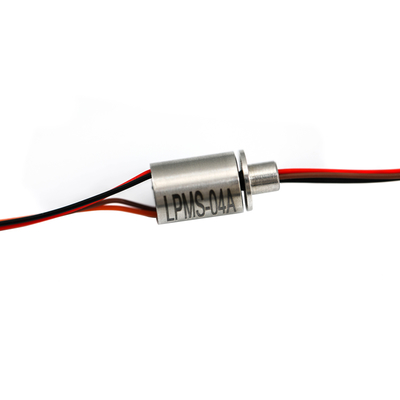

The LPMS-04A super miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Specifications
| Circuits | 4 |
|---|---|
| Current Rating | 1A |
| Voltage | 48 VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~100 RPM |
| Contact | Precious metal |
| Housing | Stainless steel |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Main Applications
- Electric devices
- Medical facilities
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment

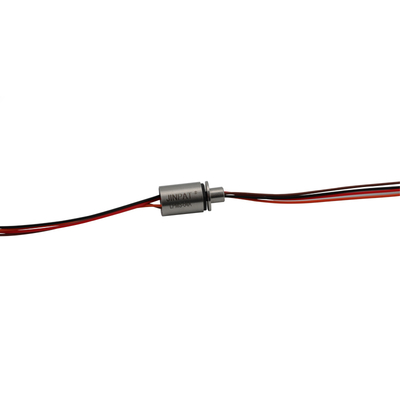

Product Images
Our Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and agents worldwide
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-hole, miniature, etc.)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency, etc.)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
Do you offer custom slip rings?
Yes, our engineers can develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
