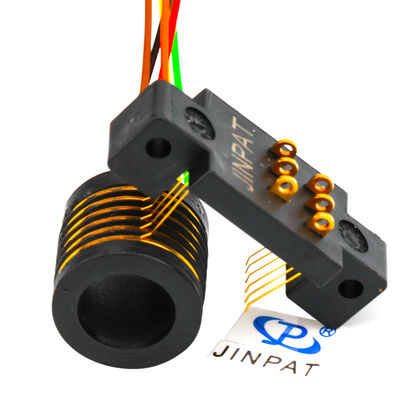

6 Circuit 240V Voltage Separate Slip Ring with 0~300 RPM for Electrical Test Equipment
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路番号 | 6 | 現在の評価 | 2a |
|---|---|---|---|
| 電圧 | 240 VAC | 作業速度 | 0~300回転/分 |
| 使用温度 | -20~+60℃ | 誘電強度 | 回路間の500V@50Hz |
| 絶縁 | 100MΩ@500VDC | 接触材料 | 貴金属 |
| ワイヤーサイズ | 28# 銀メッキ銅テフロン UL | リードワイヤの長さ | ローター:250±5mm |
| スタイル | 別のスリップ リング | ステータ接続 | オプション |
| ワイヤタイプ | 色分けされたリード線 | インターフェイス材料 | 金の接触 |
| 設置タイプ | 取り付けが簡単 | ||
| ハイライト | 6 Circuit Separate Slip Ring,240V Voltage Electrical Slip Ring,0~300 RPM Rotary Slip Ring |
||
製品の説明
6 Circuit Separate Slip Ring with 240V Voltage for Electrical Test Equipment
Premium Quality Slip Ring for Continuous Rotation Applications
The LPS-06 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.
Key Features
- Separate stator and rotor design
- Capable of transmitting power and weak signal combinations
- Optional stator connection configurations
- Low electrical resistance
- Simple installation process
- Compact design for space-constrained applications
Performance Advantages
- Extended operational lifespan
- Rapid delivery available
- Customization options to meet specific requirements
Technical Specifications
| Parameter | Value |
|---|---|
| Circuits | 6 |
| Current Rating | 2A |
| Voltage | 240 VAC |
| Dielectric Strength | 500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Wire Specification | 28# silver plated copper Teflon UL |
| Lead Wire Length | Rotor: 250±5mm |
| Operating Temperature | -20°C to +60°C |
Typical Applications
- Electrical testing equipment
- CT scanning machines
- Compact robotic systems
- LED display technology
- Miniature electronic devices
Product Visualization
Manufacturer Profile
JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings for diverse applications. The company maintains a comprehensive product line including capsule slip rings, through-bore slip rings, high-current slip rings, and custom solutions for specialized interfaces.
Corporate Advantages
- 12,000+ square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise
- Holder of 69 technology patents
- Global partnerships with industry leaders
- 10,000+ successful design implementations
- 20+ years of research and development experience
- Complimentary custom engineering solutions
- Expedited order fulfillment
