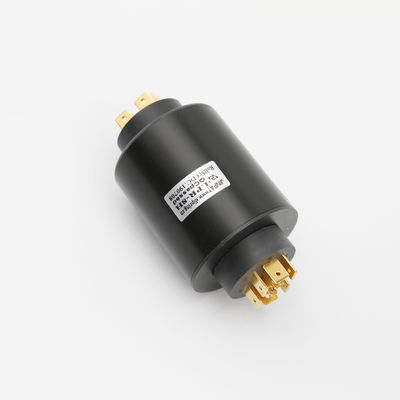

360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路番号 | 8 | 現在の評価 | 2ckt*5A、6ckt*20A |
|---|---|---|---|
| 電圧 | 240 VAC | 作業速度 | 0~300回転/分 |
| 使用温度 | -20~+60℃ | 誘電強度 | 回路間の500V@50Hz |
| 絶縁 | 100MΩ@500VDC | 電気ノイズ | ≤15mΩ |
| 接触材料 | 貴金属 | 住宅資料 | エンジニアリングプラスチック |
| ワイヤタイプ | 銀製のめっきされたピン | 保護グレード | IP54 |
| 回転角 | 360度 | 接続タイプ | ピン スリップ リング |
| 摩擦力 | 低い | ||
| ハイライト | 360 Degree Rotation Slip Ring,8 Circuit Rotary Joint,240VAC Swivel Joint |
||
製品の説明
360 Degree Rotation Swivel Joint 8 Circuit 240VAC 5A/20A 0~300 RPM Industrial Machinery Cable Reel Slip Ring
Bargain Price Only in Alibaba
Rotary Joint Slip Ring Description
The LPR series is a group of Pin Slip Rings designed and manufactured by JINPAT Electronics. This unit features an exquisite design that replaces wires with pins for connections, complying with RoHS standards. Its convenient installation makes it ideal for systems requiring power transmission in compact spaces with plug-and-play functionality.
The LPR-8H pin connection slip ring is suitable for any electromechanical system needing continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit uses gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
Rotary Joint Slip Ring Features
- Mercury-free unit with environmentally friendly design
- 360° rotating transmission capability
- Large current-carrying capacity
- No interference or data package loss
- Extremely low electrical noise and friction force
- Quick connection with spade terminal
Rotary Joint Slip Ring Advantages
- Optional circuit number configurations
- Long service life
- Maintenance free operation
Specifications
| Circuits | 8 |
|---|---|
| Current Rating | 2ckt*5A, 6ckt*20A |
| Voltage | 240 VAC |
| Dielectric Strength | 500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Housing | Engineering plastic |
| Wire Size | Silver plated pin |
| Working Temperature | -20~+60℃ |
| Protection Grade | IP54 |
Rotary Joint Slip Ring Main Applications
- Electric devices
- CT machines
- Mini robots
- LED industry
- Mini-type devices
Outline Drawing
Product Display
Company Introduction
JINPAT Electronics, founded in 1996, is a leading manufacturer of slip rings committed to developing industrial slip rings for various applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, Separate Slip Rings, and Pin Slip Rings as standard off-the-shelf units. We also support custom designs for specialized applications including Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, and RS422 interfaces. All products meet our quality management system certified by IS09001:2008/ISO14001:2015.
