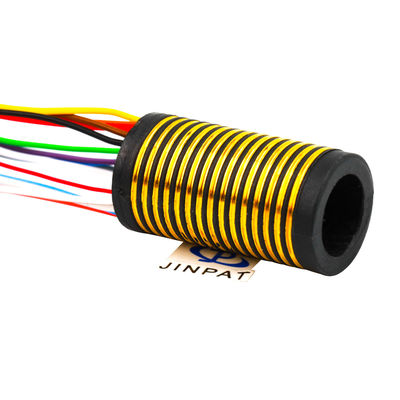

15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 最高速度 | 100 rpm | 回路の数 | 15 |
|---|---|---|---|
| 電圧 | 240 VAC/DC | 現在の評価 | 2a |
| 温度範囲 | -20 ℃〜 +60℃ | 使用湿度 | 60%RH以上 |
| 接触材料 | 金への金 | リードサイズ | 28 #銀製の銅板 |
| リードの長さ | 標準250 mm （9.843inch） | 誘電強度 | 各回路の間、≥200VAC @50Hz |
| 本体材質 | エンジニアリングプラスチック | 絶縁抵抗 | 50MΩ @ 500 VDC |
| 電気ノイズ | ≤35MΩ | 動作速度 | 0-100のrpm |
| 帯域幅転送 | 高い | ||
| ハイライト | 15 Circuit Slip Ring,100 rpm Separate Slip Ring,250mm Lead Length Rotary Electrical Connector |
||
製品の説明
15 Circuit Smooth Running Low Electrical Noise Separate Slip Ring
Gold to Gold Contact for Electrical Contacts Contact Materials
Separate slip ring consists of two parts: rotor and brush block. The rotor part can have a through bore type, making it suitable for space-limited installations. This slip ring can use pins instead of lead wires to handle larger currents.
The LPS-15 is a standard unit featuring gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.
Key Advantages
- 250mm standard lead length
- Gold to gold contact materials for extended lifespan
- Flexible, color-coded, silver-plated wiring
- Capable of transmitting both power and signal data
- High bandwidth transfer capability
Primary Applications
- Indexing tables
- CCTV pan/tilt camera mounts
- Robotics and rotary sensors
- Emergency illumination equipment
- Exhibit and display equipment
- Medical equipment
- Aviation, military, and instrumentation
- Miniature wire-rolling machines
Customization Options
- Circuits & current capacity
- Operational speed
- Dimensions
- Lead wire length
- Contact and housing materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Speed | 0-100 rpm |
| Number of Circuits | 15 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A |
| Temperature Range | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Contact Material | Gold to Gold |
| Lead Size | 28 AWG silver-plated copper |
| Lead Length | Standard 250 mm (9.843 inch) |
| Dielectric Strength | ≥200 VAC @50Hz between circuits |
| Body Material | Engineering plastic |
| Insulation Resistance | 50 MΩ @ 500 VDC |
| Electrical Noise | ≤35mΩ |
