6 Circuit 15A Through Hole Slip Ring 38.1mm 300rpm
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路 | 6回路 | 動作速度 | 0-300rpm |
|---|---|---|---|
| 作業温度 | -20~+60 | 動作湿度 | 60%RH以上 |
| 電圧定格 | 240VAC/DCかより高い | 現在の評価 | 回路ごとの15A |
| 誘電強度 | 各回路間の≥ 1000V@50Hz | 絶縁抵抗 | 500MΩ/500VDC |
| ビア径 | 38.1mm | 接触材料 | 貴金属 |
| 住宅資料 | アルミニウム合金 | 保護 | IP50 |
| 最大電流 | 5000アンペア | 最大電圧 | 10000ボルト |
| 中央の穴 | 0〜1000mm | ||
| ハイライト | 6 circuit through hole slip ring,15A through hole slip ring,38.1mm through hole slip ring |
||
製品の説明

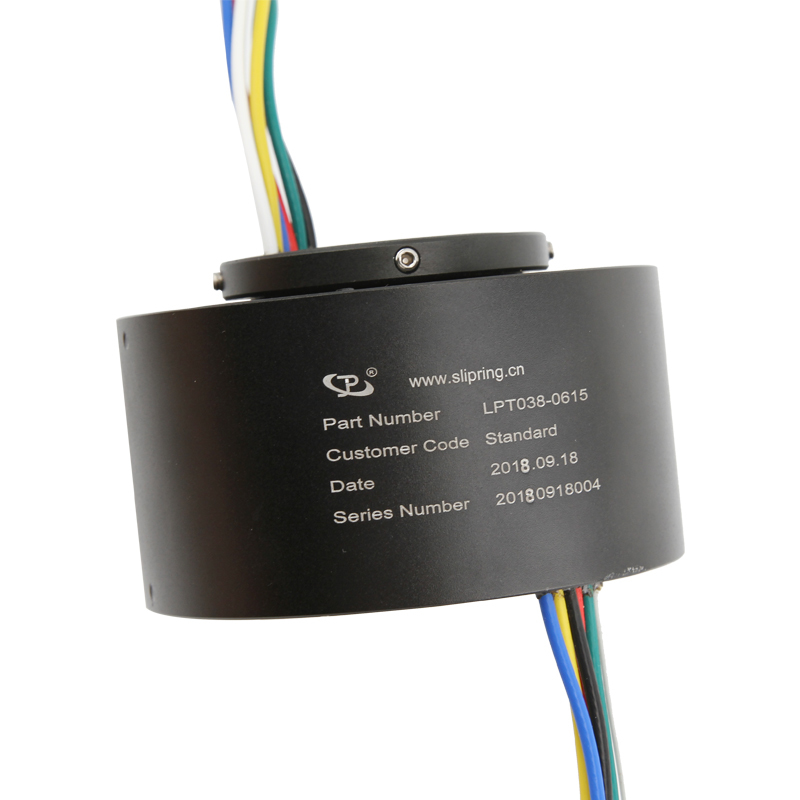

6 Circuit 15A Through Hole Slip Ring 38.1mm Size
Premium Quality Slip Ring with Long Life & Maintenance-Free Operation
LPT series through-bore slip rings feature a center hole for drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction.
Key Features
- Transmits both analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, etc.)
- HD video (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB2.0
- Industrial Fieldbus (CANBus, ProfiBus, etc.)
- Sensor signals (thermal resistance, thermocouple, strain gauge)
- Extended service life with maintenance-free operation
- Simple installation process
Technical Specifications
| Parameter | Value |
|---|---|
| Circuits | 6 circuits |
| Operating Speed | 0-300rpm |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 60%RH or higher |
| Voltage Rating | 240VAC/DC or higher |
| Current Rating | 15A per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 500MΩ/500VDC |
| Via Diameter | 38.1mm |
| Contact Material | Precious metal |
| Housing Material | Aluminum alloy |
| Protection | IP50 |
Applications
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test equipment
- Robotics
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging machinery
- Ship offshore equipment
- Construction machinery
Product Images
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- National High and New Technology enterprise with 69 patents
- Global partnerships with renowned enterprises
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of R&D experience
- Custom slip ring solutions available
- Fast delivery times
Frequently Asked Questions
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires.
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
Do you provide custom slip rings?
Yes, our engineers can develop perfect custom solutions for your specific requirements. Contact us to discuss your application needs.
