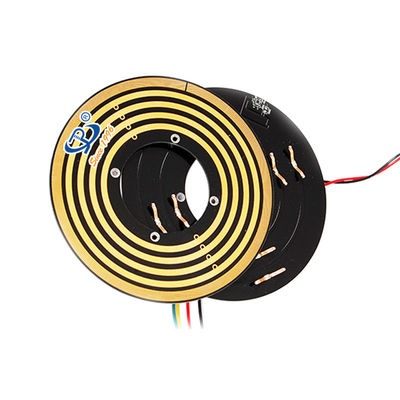

40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 回路 | 5回路 | 定格電圧 | 24V |
|---|---|---|---|
| 現在の評価 | 回路ごとに1a | 接触材料 | 貴金属 |
| 作業速度 | 0~150rpm | 内径 | φ40mm |
| 誘電強度 | ≥ 300V@50Hz | 住宅資料 | FR-4 |
| 絶縁抵抗 | 100MΩ@100VDC | ワイヤーの長さ | ステーターワイヤー:300mm ローターワイヤー:300mm |
| 動作温度 | -20°C〜+60°C | 湿度 | ≤60%RH |
| 回転速度 | 高い | 設置方法 | PCB ボードをフランジに固定 |
| 厚さ | 6mm | ||
| ハイライト | 40 mm Inner Diameter Pancake Slip Ring,5 Circuits Flat Slip Ring,24V Voltage Rating LPK Series Slip Ring |
||
製品の説明
ID 40 mm 5 Circuits Flat Slip Ring with Optional Voltage for Coiling Machine
Product Overview
The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The central hole design with surrounding copper ring and brush contact maximizes space efficiency.
Key Features
- High rotating speed capability
- Reliable contact with lightweight construction
- Exceptionally low physical noise operation
- Continuous 360° rotation for power and signal transmission
- Stable connection without interference or drops
Product Advantages
- Pre-configured photoelectric encoder option
- Available with solid or hollow shaft configurations
- Fast delivery times
- Custom engineering solutions available
Technical Specifications
| Electrical Specifications | Mechanical Specifications | ||
|---|---|---|---|
| Circuits | 5 circuits × 1A | Working Speed | 0-150 rpm |
| Working Voltage | 24V | Contact Material | Nobel Metal |
| Dielectric Strength | ≥300V@50Hz | Housing Material | FR-4 |
| Insulation | 100MΩ@100VDC | Wire Length | Stator/Rotor: 300mm each |
| Environmental Specifications | Additional Information | ||
| Temperature Range | -20°C to +60°C | Installation Method | PCB board mounts to customer's flange |
| Humidity | ≤60% RH | Inner Diameter | Φ40mm |
Industrial Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial automation equipment
- Exhibit display machinery
- Medical diagnostic equipment
- Rotary index tables
- Process control systems
